Have you ever wished for a reliable, easy-to-install backup camera system that gives you clear daytime and color night vision while recording everything for peace of mind?

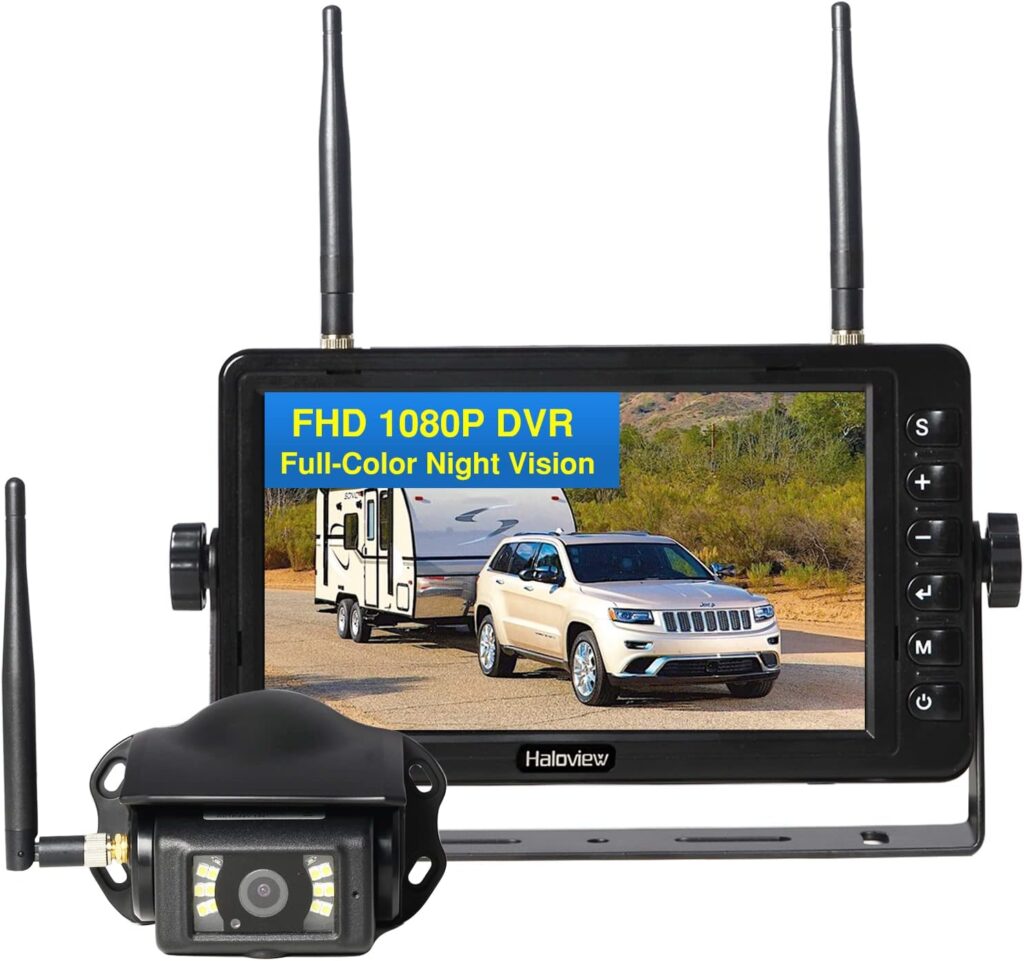

Product Overview: Haloview BT7 RV Backup Camera Wireless FHD 1080P DVR Rearview Full-Color Night Vision Cam and 7″ Monitor System Adapter for Furrion Pre-Wired RV,Truck,Trailer,Truck,Camper,Van,Pickup
You’re looking at a wireless backup system that pairs a 7″ LCD monitor with a 1080P wireless camera and built-in DVR. The Haloview BT7 is designed for larger vehicles like RVs, trailers, trucks, and campers, and it’s advertised as compatible with Furrion pre-wired systems. You’ll get real-time recording, playback, and multi-camera support with a focus on wide voltage input and low latency transmission.
What this system promises for you
The Haloview BT7 promises full-color dim-light night vision, a 120° wide viewing angle, and wireless line-of-sight transmission up to 984 feet. It stores footage in AVI format and supports up to four wireless cameras, giving you flexibility if you want multiple views around your vehicle. The monitor also doubles as a DVR so you can record continuously or event-based.
Haloview BT7 RV Backup Camera Wireless FHD 1080P DVR Rearview Full-Color Night Vision Cam and 7
$349.99 In Stock
Key Specifications
Below is a clean breakdown to help you quickly scan the core specs before you commit to reading more.
| Feature | Detail |
|---|---|
| Monitor | 7″ LCD digital monitor with built-in recorder |
| Camera Resolution | 1080P @ 30fps (FHD) |
| Video Format | AVI (composite & single-channel) |
| Viewing Angle | 120° |
| Voltage Input | 10–32V (wide range for vehicle use) |
| Wireless Range | Up to 984 ft (line of sight) |
| Latency | Low (new-gen wireless tech for minimal lag) |
| Night Vision | Full-color dim-light + remote-activated fill lights |
| Channels | Supports up to 4 wireless cameras |
| Compatible Vehicles | RV, travel trailer, truck, camper, van, pickup, tractor, fifth wheel, motorhome |
| Special Compatibility | Adapter for Furrion pre-wired RV systems |
| Recording Modes | Real-time recording, continuous, event-based, playback |
Why these specs matter to you
The combination of FHD recording, full-color night vision, and long wireless range means you’re getting both safety and recorded evidence if something happens. The voltage range ensures the system will work on a variety of vehicles without needing additional converters.
Monitor: 7″ LCD with Built-In DVR
The 7″ monitor is compact enough to mount comfortably on a dash while still giving you a usable view of what’s behind or around your vehicle. The built-in recorder is a major convenience because you won’t need a separate DVR module.
Monitor usability and interface
You’ll find the menu straightforward; basic controls let you switch camera channels, start/stop recording, and adjust settings like brightness and guidelines. The screen size balances visibility with space taken on your dash, so you’ll still have room for other instruments.
Playback and recorded video on the monitor
You can play back footage directly on the monitor, which is handy for quick checks after an incident or to confirm a recorded event. The monitor reads the recordings saved in AVI format, and switching channels during playback is supported if you use multiple cameras.

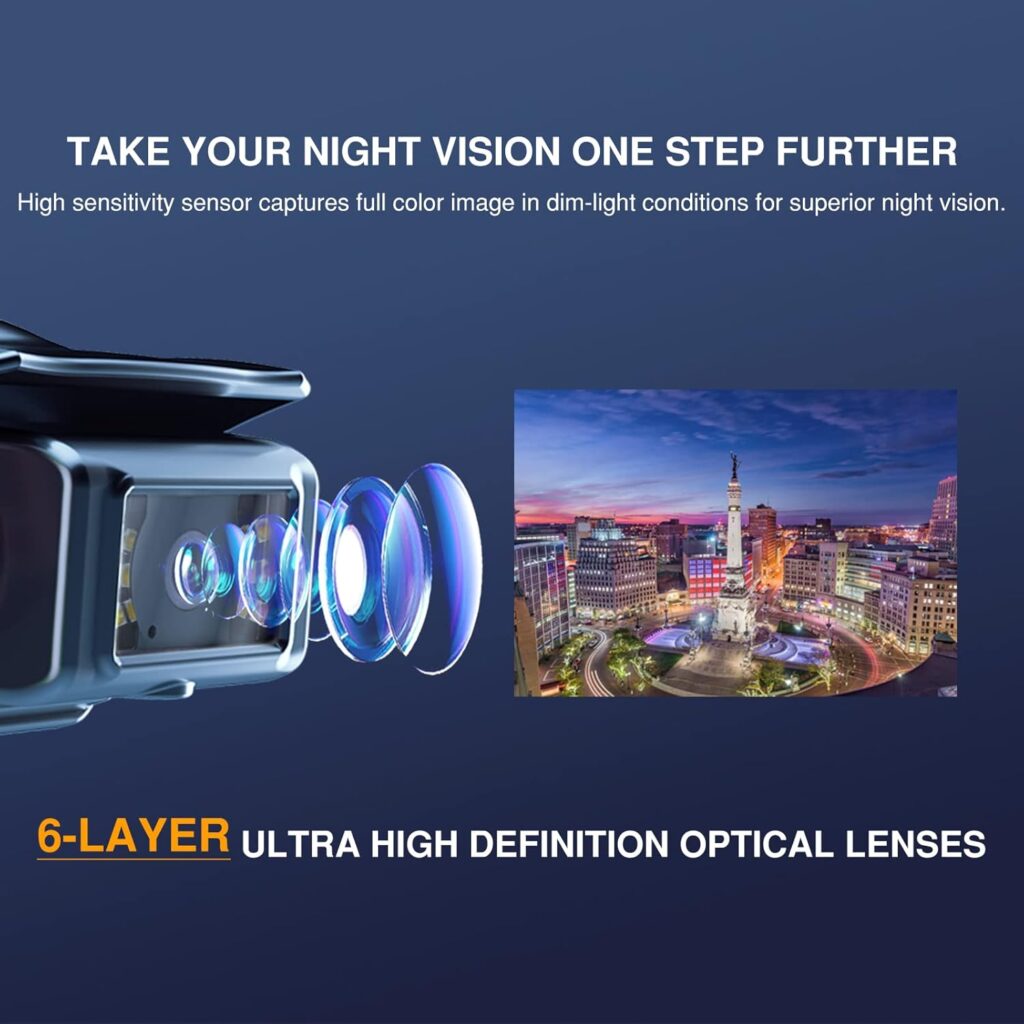

Camera: 1080P Wireless with 120° Viewing Angle
The Haloview camera shoots at true 1080P and offers a broad 120° field of view. That gives you a wide coverage behind your vehicle with minimal blind spots, which is especially helpful when backing up a long trailer or fifth wheel.
Image quality and color
In good lighting, you’ll get crisp, detailed video at 1080P resolution. Haloview’s full-color dim-light sensors help maintain natural colorization even when lighting drops, and the included fill lights can be turned on remotely when the ambient light is too low.
Mounting options and build quality
The camera housing feels rugged enough for exterior use and includes mounting hardware for surface installation. It should resist weather exposure, but you’ll want to confirm seals and tighten mounts to prevent water intrusion over time.

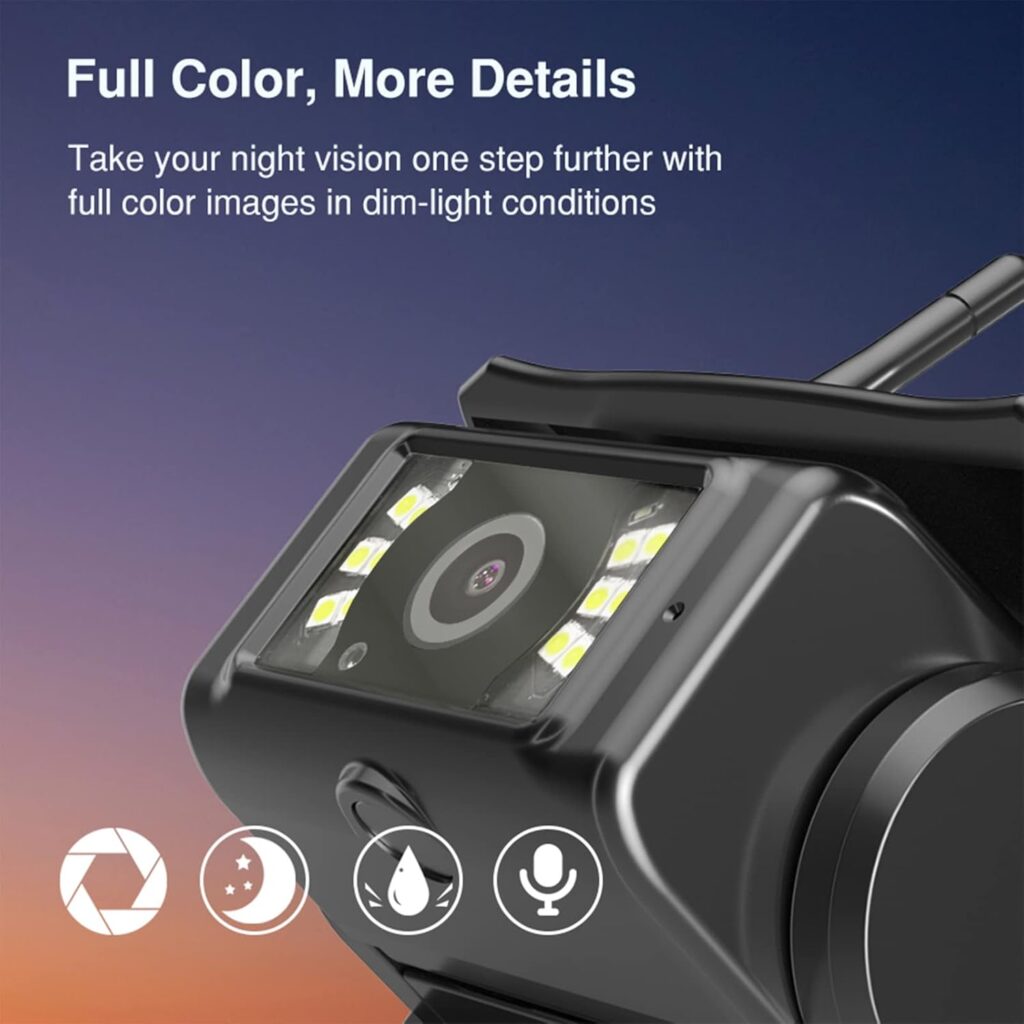

Night Vision: Full-Color Dim-Light and Fill Lights
One standout feature is full-color night vision in dim light. Rather than switching to monochrome IR-only footage, the sensor aims to preserve color, which makes it easier to identify vehicle colors, signage, or taillight state.
How the fill lights help you
When darkness drops low, the monitor can remotely toggle the camera’s fill lights. You can activate them from inside the cab to get a color image without relying only on IR—useful when you need to see license plates or detailed surroundings.
Expected performance in pitch-black conditions
If it’s completely dark, the fill lights provide illumination, but performance will vary by distance and ambient conditions. For true pitch-black situations at greater distances, you may still see reduced clarity vs. daytime, but for typical reversing and close-range observation, the system is very competent.
Wireless Performance and Latency
The BT7 claims line-of-sight wireless range up to 984 feet and emphasizes low latency with newer wireless tech. For vehicle-to-monitor setups this matters because lag can be dangerous when you’re maneuvering.
Real-world wireless reliability
If you’re operating in open areas, you’ll likely approach the advertised range. Around structures or other RF sources, expect reduced distances and potential intermittent dropouts. The low-latency claim generally holds; you’ll notice a small lag but nothing that should interfere with normal backing maneuvers on most installs.
Interference and tips to maximize signal
You can reduce interference by mounting antennas with clear sightlines, avoiding metal obstructions directly between camera and monitor, and keeping other strong wireless transmitters (like cellular signal boosters) away from the receiver.
Multi-Camera Support and Channel Switching
You can connect up to four wireless cameras, which is useful if you want rear, side, and front coverage or dual cameras on a trailer hitch and rear bumper.
Switching between cameras
The monitor’s interface lets you switch channels manually or use an automatic split-screen mode if you prefer. Switching is quick, and each channel records independently so playback is easy to review.
Recording modes for multiple cameras
You can opt for single-channel recording or 4-channel composite recording in AVI format. That flexibility means you can preserve a single camera’s footage at full quality or record multi-camera composite footage for a holistic view.
DVR and Storage
The built-in DVR records in AVI format and supports continuous, scheduled, and event-based recording. This helps you capture both routine drives and specific incidents.
How recording is handled
Recording can be set to loop so older files get overwritten as storage fills. Event-based recording typically triggers on motion or external input, which is very useful if you want footage only when something happens.
SD card requirements and file management
You’ll need a quality SD card; using a high-endurance microSD card is recommended for constant writing. Check the manual for maximum supported capacity. Managing files is straightforward from the monitor—delete, playback, or transfer via card reader to your PC.
Power and Voltage Compatibility
The camera supports 10–32V wide voltage input, which makes it compatible with most light- and heavy-duty vehicles.
Why the voltage range matters to you
You won’t have to worry about buying a converter for most trucks, RVs, or tractors. The wide voltage tolerance protects the unit against common automotive voltage fluctuations during engine start and accessory use.
Power wiring tips
If you’re hardwiring the camera, use proper fused connections and route wiring through grommets to prevent chafing. If your vehicle is Furrion pre-wired, use the supplied adapter to tap into the factory harness for a cleaner install.
Furrion Pre-Wired Compatibility and Adapter Use
One of the selling points is compatibility with Furrion pre-wired RV systems. The included adapter simplifies integration with RV wiring systems that already have Furrion connectors.
Using the adapter
If your RV is Furrion-prewired, the adapter can plug into the factory harness so you avoid cutting factory wiring. This makes installation faster and potentially reversible if you sell the vehicle or swap systems later.
What to expect if you don’t have a Furrion pre-wire
If your vehicle isn’t pre-wired, you’ll hardwire the camera and monitor into your vehicle’s power and ground. Installation is still straightforward, but you’ll spend more time routing wires and drilling mounts.
Installation and Mounting
Installation is intended to be user-friendly for DIYers who are comfortable with basic wiring and mounting techniques. For many, it’s a one-person job; for larger vehicles or multiple cameras, having a second person helps.
Steps for a typical install
- Mount the camera in your preferred rear location and secure with included hardware.
- Run power cable through a grommet or rear hatch, connect to fused power or reverse light trigger as desired.
- Mount the 7″ monitor on your dash and route the receiver/antenna.
- Pair the camera(s) with the monitor and configure angles, guidelines, and recording settings.
- Test signal, latency, and night vision in a safe area.
Common installation pitfalls
Keep the camera as unobstructed as possible and angle it to minimize glare from tail lights. Tighten mounts and confirm watertight seals. If connectivity issues arise, check antenna orientation and line-of-sight, and confirm no heavy RF sources are interfering nearby.
Image Quality: Day vs Night vs Low-Light
You’ll notice a clear difference between daytime and night footage, but the BT7’s full-color dim-light sensor narrows the gap.
Daytime performance
Sharpness, contrast, and color are good during daylight. You’ll be able to read license plates at close range and see fine details around your vehicle.
Night and low-light performance
Colors persist in dim light thanks to the sensor, and the fill lights can silhouette objects further out. If total darkness prevails at further distances, resolution and clarity naturally drop, but overall the night-time usability is above average for a wireless backup camera.
DVR File Format, Playback, and Export
The system records in AVI format, which is widely supported by media players and editing software.
Playing back and exporting footage
You can play footage on the monitor, or you can remove the microSD card and view files on a PC, which is easier for detailed review. AVI format makes sharing with insurance adjusters or law enforcement straightforward.
How easy it is to find event clips
File naming and timestamps help you find clips by date and time. If you configure event recording, the device organizes files to make them easier to locate.
Pros and Cons
You’ll want a balanced picture of strengths and limitations to determine if this is the right system for your vehicle.
Pros
- True 1080P recording at 30fps for clear video quality.
- Full-color dim-light night vision and remote-controlled fill lights.
- Built-in 7″ DVR monitor reduces extra hardware needs.
- Supports up to 4 wireless cameras for flexible coverage.
- Wide voltage input (10–32V) suits many vehicles.
- Adapter for Furrion pre-wired RV systems simplifies install.
- Low latency wireless transmission for safer backing.
- Long line-of-sight wireless range (up to 984 ft).
Cons
- Wireless performance can degrade with obstacles and RF interference.
- Fill lights are helpful but have limited range in pitch-black environments.
- Multi-camera composite recording may reduce resolution if not using single-channel recording.
- Mount and seal longevity will depend on careful installation and exposure to elements.
Practical Use Cases
This system is particularly useful for specific vehicle setups and driving needs. Knowing where it shines helps you decide if it’s worth investing in.
Best scenarios for the BT7
- You own an RV or fifth wheel and need a color night vision backup camera with recording.
- You tow trailers or boats and want multi-angle coverage (rear + side cameras).
- You drive a pickup or van and need a monitor with built-in DVR to capture incidents.
- You want wireless installation to avoid running long video cables across a trailer hitch.
When another system might be better
- If you need true long-range night illumination for very large yards or fields, add external lighting or choose a camera with stronger IR/flood lighting.
- If you require encrypted or highly interference-resistant professional-grade wireless links, a hardwired or specialized commercial system may be preferable.
Tips to Get the Best Performance
Small setup choices can make a big difference in performance and longevity.
- Use a high-endurance microSD card rated for continuous recording.
- Clean the lens periodically and protect connections with dielectric grease.
- Mount antennas for optimal line-of-sight and minimize metal blockage between camera and monitor.
- Configure event recording sensitivity to avoid excessive file generation from minor vibrations or weather.
- Tighten all mounts and check seals to prevent water intrusion.
Troubleshooting Common Problems
You’ll likely encounter a few minor issues during setup or early use; here are simple fixes.
Loss of signal or intermittent drops
- Check antenna orientation and move receiver for better line-of-sight.
- Verify there are no large metal objects between camera and monitor.
- Restart the system and re-pair the camera if problems persist.
Poor night visibility
- Make sure fill lights are enabled in low-light settings and positioned correctly.
- Confirm the camera lens is clean and free of condensation.
- Add supplemental lighting if you need longer-range night illumination.
No recording or corrupted files
- Use a recommended microSD card capacity and quality (Class 10, UHS-1, high endurance).
- Reformat the card in the monitor before use.
- Check for firmware updates or reset the DVR if file system errors persist.
Maintenance and Longevity
A little preventive maintenance will keep this system functional for years.
- Check mounting hardware annually and retighten if needed.
- Inspect seals and gaskets for wear, especially after winter or exposure to salty air.
- Replace the SD card every few years if you use constant recording, or keep a spare for critical trips.
- Keep firmware updated if Haloview releases updates that improve performance or fix bugs.
Accessories and Add-Ons to Consider
You can enhance the system by adding a few helpful accessories.
- Extra cameras to cover blind spots or trailer sides.
- A higher-capacity or rugged microSD card for long-term recording.
- A secondary power outlet or fused connection kit for neat wiring.
- A small external LED flood light if you frequently operate in very dark environments.
Final Verdict
If you want a flexible, easy-to-install backup camera system that records in 1080P, supports multiple cameras, and gives you full-color night vision in low-light conditions, the Haloview BT7 is a strong contender. It’s especially appealing if you own an RV, trailer, or truck and value built-in DVR functionality and Furrion adapter compatibility. For the price point and feature set, you’ll get a reliable system that improves safety, situational awareness, and evidence capture without a complex hardwired setup.
Who should buy it
- Owners of RVs, travel trailers, trucks, and campers who want a wireless, recorded rearview solution.
- People who value full-color night footage and flexible mounting options.
- Users who prefer fewer components (monitor + DVR in one) and want Furrion pre-wire compatibility.
Who might look elsewhere
- Buyers who need professional, encrypted wireless transmission or very long-range IR illumination might prefer specialized commercial products.
- Those who demand the absolute highest-end imaging in total darkness should consider camera systems that focus on strong IR or external lighting solutions.
FAQs
You’ll probably have specific questions; below are answers to common concerns.
Can you use multiple cameras at once?
Yes, the system supports up to 4 wireless cameras. You can switch channels manually, use split-screen modes, and record in single-channel or 4-channel composite modes.
Does it work with Furrion-prewired RVs?
Yes, the system includes an adapter to plug into Furrion pre-wired connectors, simplifying installation in compatible RVs.
What kind of SD card do you need?
Use a high-endurance, Class 10 UHS-1 microSD card. Check the manual for the maximum supported capacity and format the card in the monitor before first use.
Is the night vision truly color?
Yes, the sensor is designed to retain color in dim light conditions, and fill lights can be activated remotely to improve low-light color rendering.
How difficult is installation?
If you’re comfortable with mounting hardware and basic wiring, installation is manageable as a DIY project. Use the Furrion adapter if available to avoid extra wiring.
Closing Notes and Purchase Tips
Before you buy, confirm your vehicle’s pre-wiring standard and measure the likely camera-to-monitor distances to ensure the wireless range will meet your needs. Keep an eye out for firmware updates from Haloview, and select a high-quality microSD card to protect your recordings. With a careful install and the right accessories, this system can significantly improve your backing safety and provide recorded peace of mind during long trips or overnight stays.
